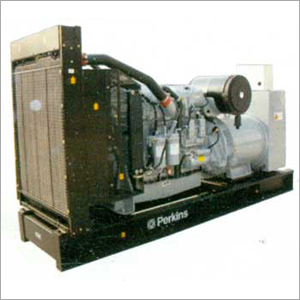

Perkins Generator Set

Perkins Generator Set
Perkins Generator Set
Product Code : 01
Brand Name : JAIDEEP
Price And Quantity
  • Unit of Measure
  • Unit/Units
Product Description

Perkins

PRIME POWER rating corresponds to ISO Standard Power for continuous operation. It is applicable for supplying of electrical power at variable load for an unlimited number of hours instead of commercially purchased power. A 10% overload capability is available with this rating.

STANDBY POWER rating corresponds to ISO Fuel Stop Power. It is applicable for supplying standby electrical power at variable load in areas with well established electrical networks, in the event of power failure. No overload capability is available with this rating.

POWER STANDARDS

Engine Performance corresponds to ISO 3046, BS 5514, SAE J 1349 and DIN 6271. The technical data applies to an engine operating on a fuel with a calorific value of 42.7 MJ/Kg (18360 BTU/lb) and a density of 0.84 Kg/liter (7.01 lb/US gal.) Engine speed governing is in accordance with ISO 3046/IV, Class A1 and ISO 8532 Class G2. The engines may be operated up to 1500 m altitude and 40°C ambient temperatures without duration.

Perkins Advantages

  • Excellent power to weight ratio
  • Compact size for easier transportation and installation
  • Designed to provide excellent service access for ease of maintenance
  • Eight cylinder in-line engine for 1010KVA and twelve cylinder V engine from 1250 to 1700 KVA D.G set application
  • High block loading capability
  • Control of piston temperatures by an advanced gallery jet cooling system
  • Low gaseous emission for clearer operations
  • Commonality of components over the entire range of engines

Technical Data

Genset Model

SP 1010

SP 1250

SP 1375

SP 1500

KVA Rating

1010

1250

1375

1500

Engine Model

4008 TAG 2A

4012-46TAG0A

4012-46TAG1A

4012-46TAG2A

Type

4 Stroke water cooled 1500 RPM Diesel engine

No. of cylinder & Arrangement

8 -Vertical in-line

12 V

Governor

Electronic

Fuel System

Unit Injection

Direct Fuel Injection system with fuel lift pump

Bore X stroke (mmxmm)

160x190

Compression Ratio

13, 6:1

Starting

24 V DC Electric

Lead Acid type battery

4 Nos. 180 AH

Fuel day tank capacity

990

Approx coolant capacity incl radiator (ltrs)

149

210

198

Lub oil capacity incl. Oil filters(ltrs)

165.6

177

177.6

Lub oil specification

API CG4 15W/40

API CH4 15W/40

Recommended fuel specification

ASTM D975 No 2-D or BS2869 Class A2 or BSEN 590

Approx DG set dimensions (LXWXH) in mm

4900x2550x2350

5600x2350x2400

Approx. Dry weight (gensets only) in kgs

7800

10000

1010

10300
